Màn hình Lilliput Q5 5.5 inch Camera-top full hd SDI monitor

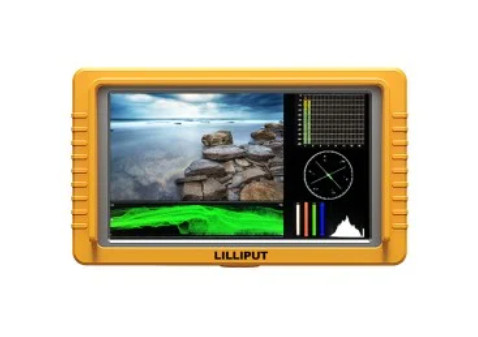

Q5 is a professional camera-top monitor specifically for photography, which features 5.5″ 1920×1080 FullHD native resolution screen with fine picture quality and good color reduction. It’s interfaces support SDI and HDMI signals inputs and loop outputs; And also supports SDI/HDMI signal cross conversion.For the advanced camera auxiliary functions, such like waveform, vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.Aluminum main body with silicon rubber case, which effectively improves monitor durability.

• Model:Q5
• Physical resolution:1920×1080
• Input:1×3G-SDI, 1×HDMI 1.4
• Output:1×3G-SDI, 1×HDMI 1.4
• Feature:SDI & HDMI cross conversion，metal housing

A Better Camera Assist

Q5 matches with world-famous 4K / FHD camera brands, to assist cameraman in better photography experience

for variety of applications, i.e. filming on site, broadcast live action, making movies and post-production, etc.

Excellent Display

 It features 5.5″ 16:9 LCD panel with 1920×1080 full HD resolution (401ppi), 1000:1 high contrast, 160° wide

viewing angles, 450cd/m² high brightness, which offers outstanding viewing experience.

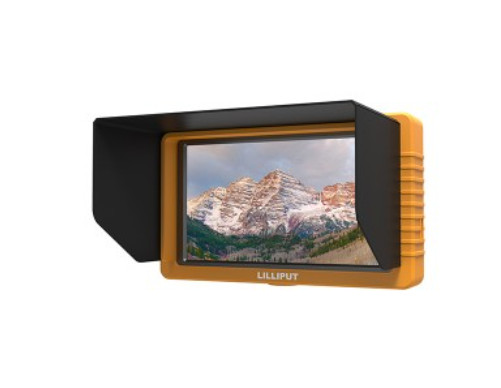

Metal Housing Design & silicon rubber case

Compact and firm metal body, silicon rubber case with sun shade, providing an overall protection from drop,

shock, sunlight and bright light environment.

Camera Auxiliary Functions

Q5 provides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

Easy-to-use

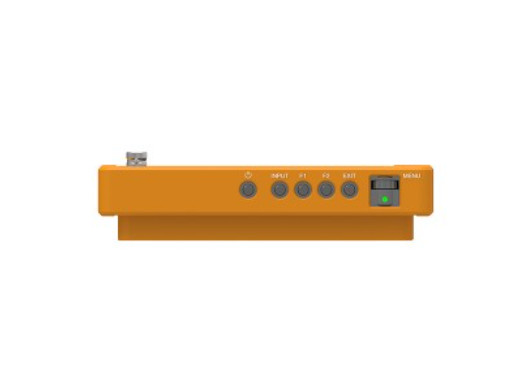

F1 and F2user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial

to select and adjust the value among of sharpness, saturation, tint and volume, etc. EXIT Single press to activate mute function

under non menu mode; Single press to exit under menu mode.

SDI and HDMI cross conversion

The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal.

In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.
